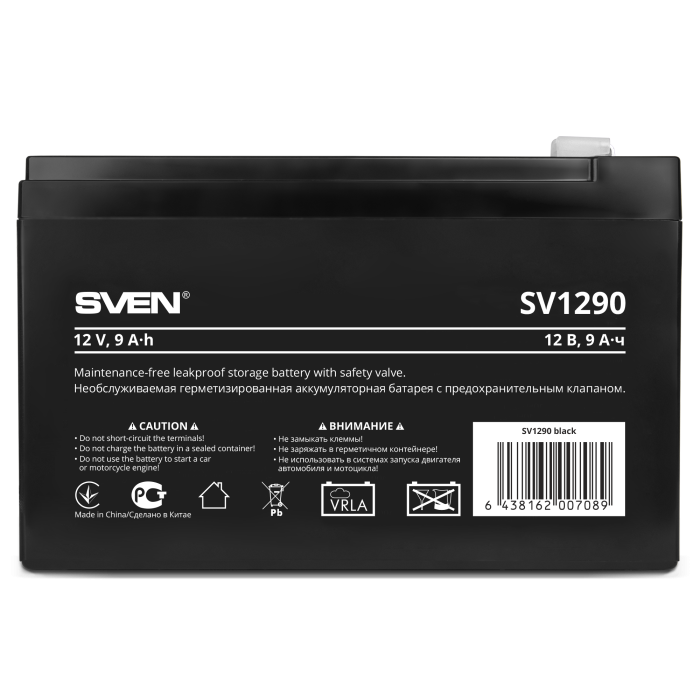

SVEN SV1290

UPS battery 12V 9Ah

Catalog Electrical Equipment Batteries SVEN SV1290

AN: SV-0222009

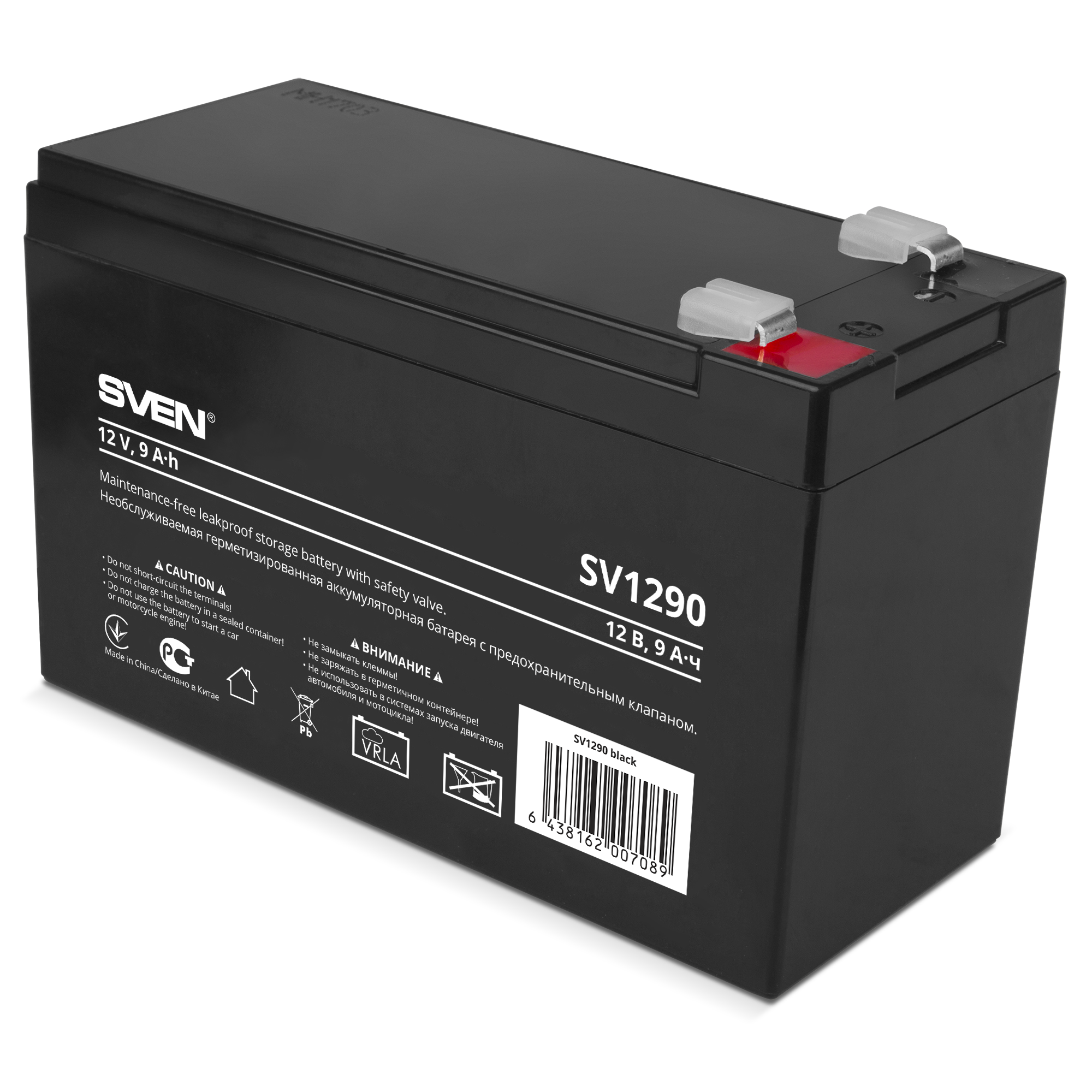

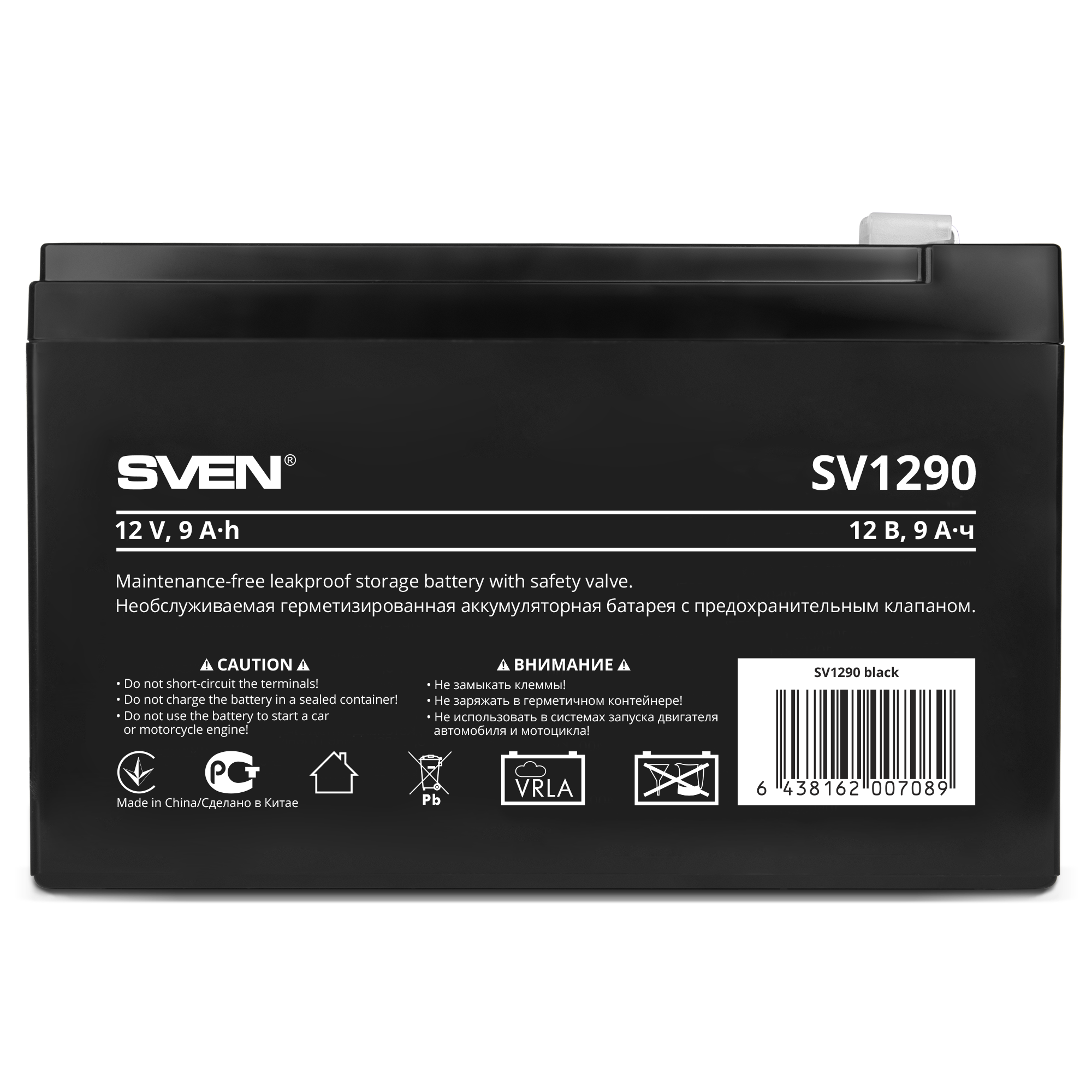

SVEN SV1290

UPS battery 12V 9Ah

Short product description:

Lead-acid battery of AGM type
Leak-proof design
Doesn't require maintenance and service
Increased service life

All features

Similar products

SVEN SV645

SVEN SV1250

SVEN SV1270

SVEN SV1272

SVEN SV12120

SVEN SV12170

SVEN SV121000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Lead-acid battery of AGM type
Leak-proof design
Maintenance-free: doesn't require maintenance and can operate in any position
Design of interelectrode separators made of glass fiber increases service life
Does not liberate gas during operation
Valve system protecting the battery against increased pressure
Highly effective lead-calcium electrode grids increasing capacity
Lowered self-discharge current

Battery type	Lead-acid AGM type storage battery
Rated voltage, V	12
Maximum discharge current, A	128
Capacity (20 hours discharge), А • h	9
Maximum charging current, A	2.7
Internal resistance, MOhm	16
Self-discharge (at 25 °C of initial capacity) during the year	up to 36 %
Rated operating temperature, °C	25
Operating temperature range, °C	-20 up to +50
Terminal type	F2
Length, mm	151
Width, mm	65
Hight, mm	94
Total hight, mm	100
Weight, kg	2.4
Color	black
Life time	5 years

Other items

SVEN SRP-150

Portable radio, Bluetooth, USB/microSD player

SVEN PS-395

Waterproof portable speaker system with Bluetooth and RGB backlight

SVEN Pro 650 (LCD, USB)

Line interactive UPS with LCD, 390W, 2 sockets, USB

SVEN SPS-606

230V speakers with headphone audio output

SVEN KB-G8900

Mechanical backlit gaming keyboard

SVEN E-310B

TWS earbuds with ANC

New

SVEN MS-G32

Backlit gaming speaker system with Bluetooth

SVEN MS-2250

Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control

SVEN RX-560SW

Wireless mouse with silent buttons

SVEN AP-B751MV

Hybrid Active Noise Canceling (Hybrid ANC) wireless stereo headset

SVEN MC-30

Speaker system with the highest sound quality. Bluetooth, Optical, remote control, headphone output

SVEN G345

Speaker system with Bluetooth and dynamic switchable backlight

As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.

Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
