SVEN UP-L1000E
Line interactive UPS, 510W, 6 sockets
.png "Built-in automatic voltage regulator")
.png "Output voltage range")
AN: SV-016593
SVEN UP-L1000E
Line interactive UPS, 510W, 6 sockets
Short product description:
- Line Interactive UPS Type
- Wall mountable
- Microprocessor control
- Built-in AVR with wide input voltage range
Similar products
SVEN SB-2400DD
SVEN SB-2200D
SVEN SB-2150A
SVEN SB-2065
SVEN SB-2055
SVEN SB-2040A
SVEN SB-2035
SVEN SB-G1450
SVEN SB-G1400
SVEN 450
SVEN 422
SVEN SB-2400DD
SVEN SB-2200D
SVEN SB-2150A
SVEN SB-2065
SVEN SB-2055
SVEN SB-2040A
SVEN SB-2035
SVEN SB-G1450
SVEN SB-G1400
SVEN 450
SVEN 422
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Line Interactive UPS Type
- Wall mountable
- Microprocessor control
- Input voltage ~175–290V (±3%)
- Output voltage ~230V (-14/+10%)
- Built-in AVR with wide input voltage range
- Automatic self-testing when turned on
- Cold start function
- "Autostart" function when connecting/ restoring mains power
- Sinusoidal output voltage during battery operation
- Built-in surge protector for protection against HF pulses and interference
- Six euro sockets CEE7/4 (EU) with durable fixation of plugs of any type
- Children protection
- Thermal protection of the transformer
| UPS type | line-interactive |
| Total power, VА | 1000 |
| Active power, W | 510 |
| Input voltage level, V | ~175 – 290 (± 3 %) |
| Output voltage level, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Number of phases | 1 |
| Battery voltage, V | 12 |
| Battery capacity, А•h | 9 |
| Typical switching time, ms | ≤ 10 |
| AGM battery model recommended for use in this model of UPS | SV1272 / SV1290 |
| Environmental temperature, °С | from 5 to 40 |
| Relative humidity, % | 10 ~ 90, without condensation |
| Dimensions (W × H × D), mm | 185 × 95 × 280 |
| Weight, kg | 5.38 |
| Color | black |
| Life time | 5 years |

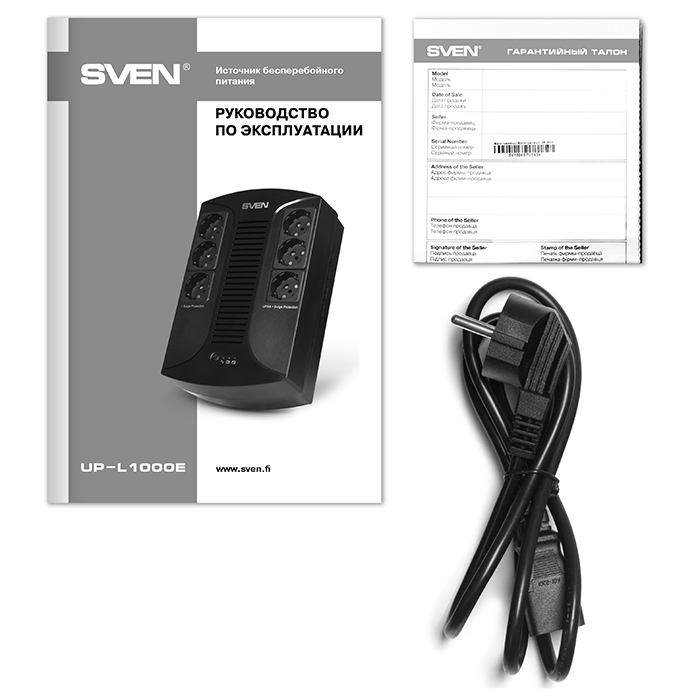

Package contents
- Uninterruptible power supply — 1 pc
- Operation manual — 1 pc
- Warranty card — 1 pc
