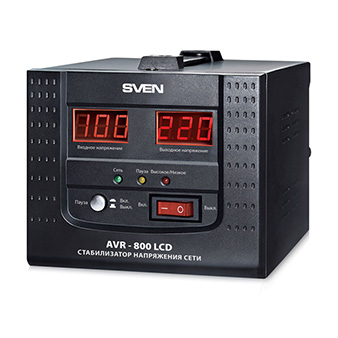

SVEN AVR-800 LCD
Description
The automatic voltage regulator of SVEN AVR LCD series is designed to correct on-line power supply in conditions of stably low or high voltages. The wide range of input voltages from 100 V to 280 V allows operating the device in conditions of critical power supply state. The automatic voltage regulator is equipped with protection against short circuit, overload, overheating, overvoltage and under voltage.
The Pause function (6 or 180 seconds – at option) allows safe connecting devices-consumers to the power supply network at the moment of power supply renewal. The device is equipped with digital indicators, which display the input and output voltages. Due to its strong metal shockproof housing the automatic voltage regulator can be also used in technical premises such as a garage, workshop and boiler house.
Features
- Automatic switch-off in case of overvoltage
- Wide range of input voltage
- Digital voltage indicator on the front panel
- Protection of consuming devices from excessive input and output voltage, high-frequency and high-voltage interferences
- Network status indicators on the front panel
- Pause function for power supply delay at its renewal
- Metal housing
- Convenient carry handle
Technical Specifications
| Type | relay |
| Maximum load, W | 800 / 560 |
| Input voltage level, V | 100 – 280 |
| Output voltage level, V | 220 ± 8 % |
| Frequency, Hz | 50 |
| Maximal interference current, A | 6 |
| Dimensions, mm | 150 × 130 × 220 |
| Weight, kg | 2.74 |
| Life time | 5 years |
