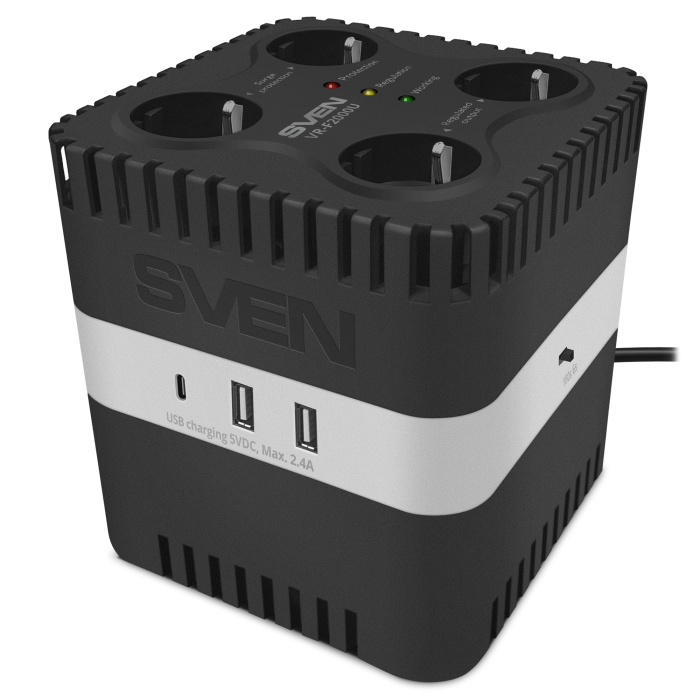

SVEN VR-F1200U
Relay automatic voltage regulator, 330 W, 4 sockets
New
AN: SV-022761
SVEN VR-F1200U
Relay automatic voltage regulator, 330 W, 4 sockets
Short product description:
- Input voltage ~170-285 V (±3%)
- Output sockets 4 × CEE 7/4 (2 × AVR and 2 × surge protector)
- Additional outputs 2 × USB-A and 1 × USB type-C
- Wall mountable
Similar products
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1500
SVEN VR-F2000U
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1500
SVEN VR-F2000U
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
Wide range of input voltage
Input voltage, enabling stable operation of the device, varies between 170 and 285 V. Consistently supported output voltage is ~230 V (-10/+10%).
Four output sockets Cee 7/4 with different designation
The device contains four output sockets CEE7/4: two of them operate in AVR and surge protector mode and the other two — in a surge protector mode.
Additional outputs 2 × USB-A and 1 × USB type-C
An excellent solution for those who want to charge several devices simultaneously without losing power. Thanks to type-C and USB-A, the device is compatible with almost any equipment, and the total maximum current of 2.4A ensures fast and safe charging.
Pause at power supply after failure
Power supply to connected devices after a power failure is possible with a pause of your choice for 6 or 180 seconds, which provides an additional level of protection.
Built-in power strip
Built-in power strip protects against high frequency pulses and noises in electrical network.
Wall-mounting for compact positioning
Four mounting holes on the rear panel make it easy to mount the device on walls in any desired position.
LED indication of operation modes
LED indicators allow to monitor current state and operation mode of the device.
Automatic fuse in a switch key
Automatic fuse in a switch key ensures full protection against overloads and short circuits, as well as allows to continue operation after triggering.
- Single-phase relay-type stabilizer
- Input voltage ~170-285 V (±3%)
- Output voltage ~230 V (-10/+10%)
- Four output sockets CEE 7/4 (2 × AVR, 2 × surge protector)
- Additional connectors 1 × USB type-C and 2 × USB-A with a total maximum output current of 5 V /2.4 A
- Safe shutdown at high and low mains voltage levels
- Select the time to delay power supply (6 or 180 seconds) when power is restored
- Built-in surge protector for protection against HF pulses and interference
- Wall mountable
- LED indication of operating modes
- Automatic fuse for protection against overloads and short circuits in the switch key
- Thermal protection of the transformer
| Maximal output power, W | ≤330 |
| Input voltage, V | ~170 - 285 (±3%) |
| Output voltage, V | ~230 (-10/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Input socket | 1 × СЕЕ7/7 |
| Output sockets | 4 × CEE7/4 |
| Protection operating current, A | 3 |
| Typical switching time, ms | ≤10 |
| Maximum absorbed impulse noise power, J | ≤320 |
| Turn-on delay time, sec | 6/180 |
| Environmental temperature, °С | 0 to +40 |
| Relative humidity, % | 10 ~ 90 (without condensation) |
| Cable length, m | 1.2 |
| Dimensions (W × H × D), mm | 142 × 158 × 146 |
| Weight, kg | 2 |
| Color | black |
Package contents
- Automatic voltage regulator — 1 pc
- User manual — 1 pc
- Warranty card — 1 pc
Other items
Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control
Multifunctional speaker system with Bluetooth, USB player, FM radio, display, remote control
News
03/26/2026
SVEN G600 GAMING MULTIMEDIA SPEAKERS — UNIQUE GAMER DESIGN
Introducing the new SVEN G600 multimedia 2.0 speaker system. More than just computer speakers, it’s a full-fledged gaming audio hub that perfectly blends compact practicality, sleek design, cutting-edge technology, and meticulous attention to detail.
Details >>
03/13/2026
SVEN VR-F1200U AND VR-F2000U VOLTAGE STABILIZERS — UNIVERSAL PROTECTION AND CONVENIENT CHARGING
We are pleased to present a new line of single-phase relay voltage stabilizers designed for comprehensive protection of home appliances and simultaneous charging of mobile devices.
Details >>
03/11/2026
SVEN PS-130 PORTABLE SPEAKER — WHERE MOOD COMES ALIVE
SVEN PS-130 portable speaker is more than just a compact audio device — it's a true mood maker that fits in the palm of your hand yet delivers sound far beyond its size. Weighing just half a kilogram and wrapped in an elegant body available in three vibrant colors — black, blue, or red.
Details >>We are pleased to present a single-phase relay voltage stabilizer designed for comprehensive protection of home appliances and simultaneous charging of mobile devices. The SVEN VR-F1200U model combine voltage stabilization, surge suppression, and modern USB hub functionality in one compact solution.
The model is engineered for use in power grids with unstable voltage. It delivers a stable output voltage of ~230 V (-10%/+10%) across a wide input range of 170–285 V (±3%). With a switching time of no more than 10 ms, this device ensure safe and reliable operation for sensitive electronics.
The built-in surge filter protects connected equipment from high-frequency impulses and electrical noise, absorbing surge energy up to 320 J. An additional layer of safety is provided by an auto-resetting circuit breaker integrated directly into the power switch: it safeguards against overloads and short circuits and allows for quick recovery after tripping. Thermal protection for the transformer is also included.
A key feature of the model is the enhanced versatility of the outlet configuration. The unit is equipped with four CEE 7/4 output sockets: 2 sockets operate in AVR (voltage stabilization) + surge filter mode and 2 sockets operate in surge filter mode only.
For users with modern gadgets, the device includes additional charging ports: 1 × USB Type-C and 2 × USB-A. The combined maximum output current for all USB ports is 5 V / 2.4 A, enabling fast and safe simultaneous charging of multiple devices without power loss.
Users can independently select the delay time for power restoration after a grid interruption — 6 or 180 seconds. This feature provides an extra layer of protection for equipment against repeated voltage spikes during power recovery scenarios. LED indicators keep users informed about the current operating mode and device status.
Thanks to four mounting holes on the rear panel, the stabilizer can be conveniently wall-mounted in any orientation, saving valuable floor or desk space. The power cord length is 1.2 meters, and the input plug follows the CEE 7/7 standard.
The SVEN VR-F1200U stabilizer is an excellent solution for anyone looking to protect their equipment from voltage fluctuations while creating a convenient charging station for smartphones and tablets. With both Type-C and USB-A ports, this device is compatible with virtually any modern gadget.
