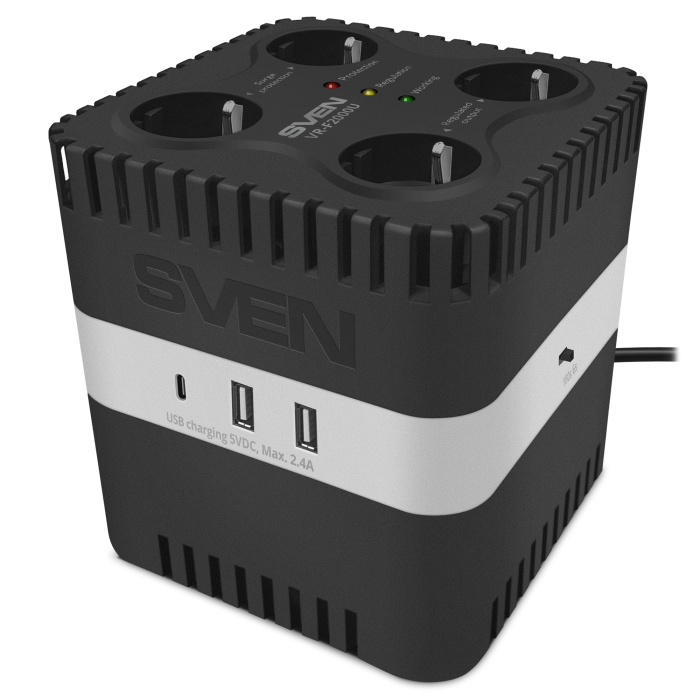

SVEN VR-F1200U

Relay automatic voltage regulator, 330 W, 4 sockets

New

Tuotteet Electrical Equipment Automatic Voltage Regulators SVEN VR-F1200U

New

AN: SV-022761

SVEN VR-F1200U

Relay automatic voltage regulator, 330 W, 4 sockets

Short product description:

Input voltage ~170-285 V (±3%)
Output sockets 4 × CEE 7/4 (2 × AVR and 2 × surge protector)
Additional outputs 2 × USB-A and 1 × USB type-C
Wall mountable

All features

Wide range of input voltage

Input voltage, enabling stable operation of the device, varies between 170 and 285 V. Consistently supported output voltage is ~230 V (-10/+10%).

Four output sockets Cee 7/4 with different designation

The device contains four output sockets CEE7/4: two of them operate in AVR and surge protector mode and the other two — in a surge protector mode.

Additional outputs 2 × USB-A and 1 × USB type-C

An excellent solution for those who want to charge several devices simultaneously without losing power. Thanks to type-C and USB-A, the device is compatible with almost any equipment, and the total maximum current of 2.4A ensures fast and safe charging.

Pause at power supply after failure

Power supply to connected devices after a power failure is possible with a pause of your choice for 6 or 180 seconds, which provides an additional level of protection.

Built-in power strip

Built-in power strip protects against high frequency pulses and noises in electrical network.

Wall-mounting for compact positioning

Four mounting holes on the rear panel make it easy to mount the device on walls in any desired position.

LED indication of operation modes

LED indicators allow to monitor current state and operation mode of the device.

Automatic fuse in a switch key

Automatic fuse in a switch key ensures full protection against overloads and short circuits, as well as allows to continue operation after triggering.

Single-phase relay-type stabilizer
Input voltage ~170-285 V (±3%)
Output voltage ~230 V (-10/+10%)
Four output sockets CEE 7/4 (2 × AVR, 2 × surge protector)
Additional connectors 1 × USB type-C and 2 × USB-A with a total maximum output current of 5 V /2.4 A
Safe shutdown at high and low mains voltage levels
Select the time to delay power supply (6 or 180 seconds) when power is restored
Built-in surge protector for protection against HF pulses and interference
Wall mountable
LED indication of operating modes
Automatic fuse for protection against overloads and short circuits in the switch key
Thermal protection of the transformer

Maximal output power, W	≤330
Input voltage, V	~170 - 285 (±3%)
Output voltage, V	~230 (-10/+10%)
Input frequency, Hz	50
Output frequency, Hz	50
Input socket	1 × СЕЕ7/7
Output sockets	4 × CEE7/4
Protection operating current, A	3
Typical switching time, ms	≤10
Maximum absorbed impulse noise power, J	≤320
Turn-on delay time, sec	6/180
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Cable length, m	1.2
Dimensions (W × H × D), mm	142 × 158 × 146
Weight, kg	2
Color	black

Package contents

Automatic voltage regulator — 1 pc
User manual — 1 pc
Warranty card — 1 pc
