SVEN VR-F1500 Relay automatic voltage regulator, 500 W, 4 sockets

SVEN VR-F1500

Relay automatic voltage regulator, 500 W, 4 sockets

Catalog Electrical Equipment Automatic Voltage Regulators SVEN VR-F1500

7 MORE

AN: SV-018825

SVEN VR-F1500

Relay automatic voltage regulator, 500 W, 4 sockets

Short product description:

Protection against high voltage, low voltage, HF and noise
High overload capacity
Safe shutdown at high and low mains voltage levels
AVR Overload and short circuit protection

All features

Similar products

SVEN VR-L600

SVEN VR-L1000

SVEN VR-L1500

SVEN VR-A1000

SVEN AVR SLIM-500 LCD

SVEN AVR SLIM-1000 LCD

SVEN AVR SLIM-2000 LCD

SVEN VR-F600

SVEN VR-F1000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Protection against high voltage, low voltage, HF and impulse noise
High overload capacity
Safe shutdown at high and low mains voltage levels
AVR Overload and short circuit protection
Built-in surge protector for protection against HF pulses and interference
Thermal protection of the transformer
LED indication of operating modes
Automatic fuse for protection against overloads and short circuits in the switch key
Wall mountable
Input voltage ~180-285V (±3%)
Output voltage ~230V (-14/+10%)
Four output sockets CEE 7/4 (2×AVR, 2×surge protector)

Maximal output power, W	≤500
Input voltage, V	~180V-285V±3%
Output voltage, V	~230 (-14/+10%)
Input frequency, Hz	50
Output frequency, Hz	50
Input socket	1 × СЕЕ7/7
Output sockets	4 × CEE7/4 (2 for AVR, 2 for surge protection)
Protection operating current, A	7
Typical switching time, ms	≤10
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Dimensions (W × H × D), mm	230 × 120 × 102
Weight, kg	1.92

Package contents

Automatic voltage regulator — 1 pc

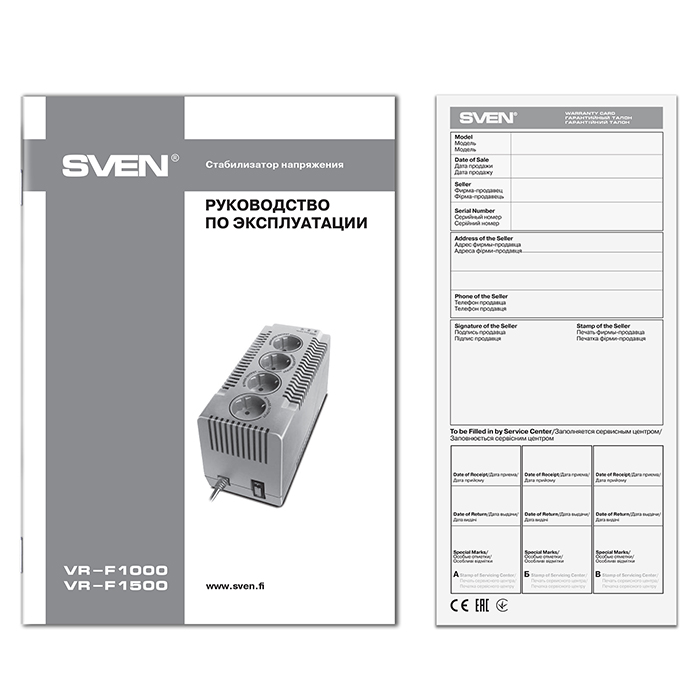

User manual — 1 pc
Warranty card — 1 pc
