SVEN Reserve Home-500

Catalog Electrical Equipment Uninterruptible Power Supplies SVEN Reserve Home-500

SVEN Reserve Home-500

Short product description:

Continuous action with prolonged back-up time
Regular sinusoidal output signal
Microprocessor control
Intellectual charger for connected external batteries (stora...

All features

Similar products

SVEN Pro 400

SVEN Pro 600

SVEN Pro 650 (LCD, USB)

SVEN Pro 800

SVEN Pro 1000 (USB)

SVEN Pro 1500 (LCD, USB)

SVEN UP-L800

SVEN UP-L1000E

SVEN RT-500

SVEN RT-1000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Continuous action with prolonged back-up time
Regular sinusoidal output signal
Microprocessor control
Intellectual charger for connected external batteries (storage batteries) with the “training” mode of batteries
Protection against short circuit, overvoltage or undervoltage of the mains and overload
IP-20 ingress protection
Self-diagnosis after switching on

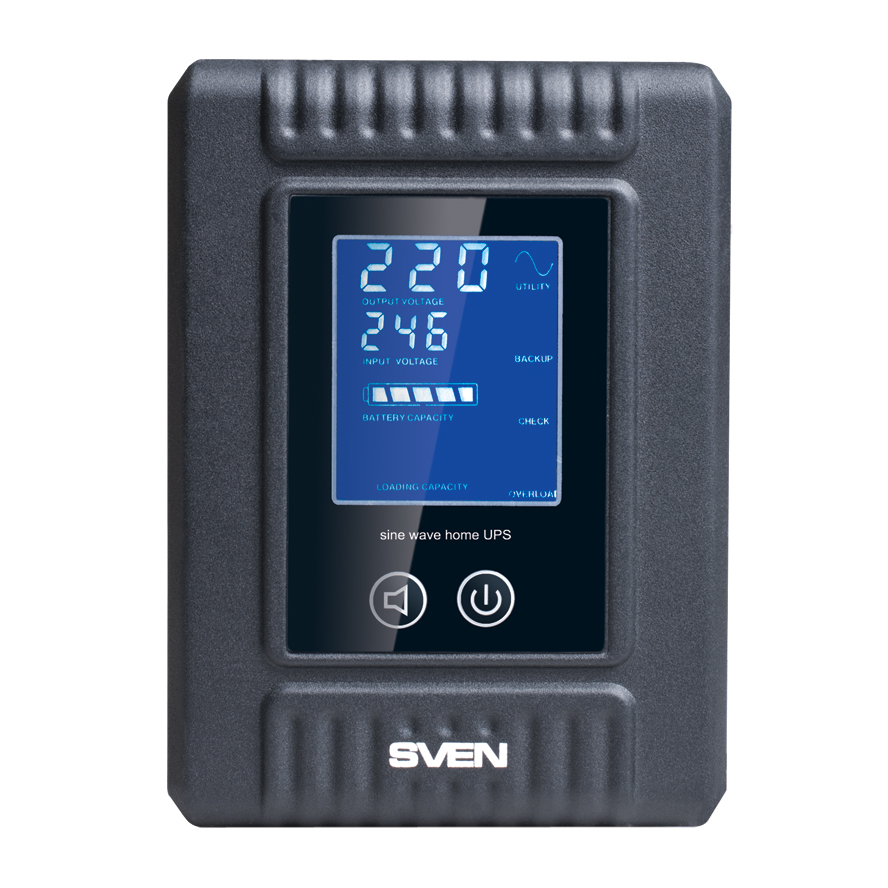

Indication of operation modes on LCD display
Mode switchover time ≤ 5 msec
Built-in line regulator
Automatic start function
Low noise level

UPS type	line-interactive of continuous action with long backup time
Built-in AVR	available
Total power, VА	500
Active power, W	300
Type of load	household and industrial equipment
Maximum load, W	300
Input voltage level, V	~150 – 275
Output voltage level, V	~220 ± 10 %
Output voltage waveform	regular sinusoidal signal
Input frequency, Hz	50
Output frequency, Hz	50
Number of phases	1

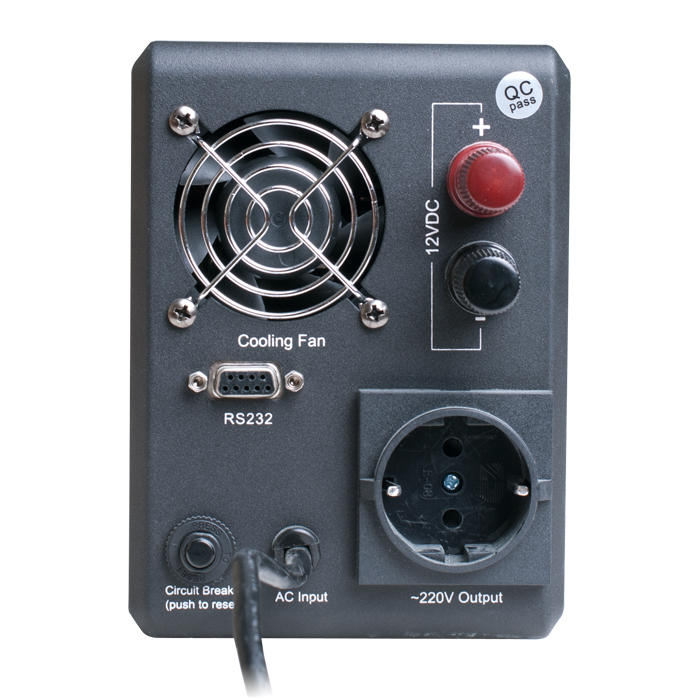

Communication port	RS232
Input terminals	terminals for battery connection
Input socket	1 × CEE 7/7
Output sockets	1 × CEE7/4
Allowable overload of the rated power, %	≤ 110
Overload protection acting, %	120
Protection	against short circuit, overvoltage or undervoltage of the mains and overload
Beeps	low battery charge, overload, error
Accumulator type	non-serviceable leakproof lead-acid batteries (not included)
Typical switching time, ms	< 5
Cooling type	convective; by fan
Indication	operation modes on LCD display
Operation mode	continuous action with long backup time
Noise level, dB	45
Operating temperature, °С	from -5 to +40
Operating humidity, %	10-90, without condensation
Efficiency, %	65
Case material	metal
Dimensions (W × H × D), mm	115 × 165 × 344
Weight, kg	4.6
Color	black
Life time	5 years

Other items

SVEN HC-01

Microfiber mouse pad with rubber backing

New

SVEN PS-990

Waterproof portable boombox speaker with Bluetooth and RGB backlight

SVEN MS-2085

Backlit gaming speaker system, Bluetooth, USB/SD player, FM radio, display, remote control

SVEN RX-G880

Programmable gaming mouse

SVEN RT-1000

600W Sine Wave Line Interactive UPS, External Batteries

SVEN SPS-575

USB powered speakers with side panel volume control

SVEN RX-210W

Wireless mouse with adjustable cursor speed

SVEN AP-B800MV

Hybrid Active Noise Canceling (Hybrid ANC) wireless stereo headset

New

SVEN MC-25

Hi-Fi speaker system with the highest sound quality. Bluetooth, HDMI (ARC), remote control

SVEN GC-W300 Racing Wheel

Windows compatible gaming steering wheel

SVEN SV1250

UPS battery 12V 5Ah

SVEN E-210M

Wired in-ear earbuds with microphone

SVEN RESERVE HOME uninterrupted power supplies developed and produced by SVEN Company are the ideal solution for the uninterrupted power supply for heating systems, intellectual fire-control units and security systems, automation and refrigeration systems, etc. in conditions of low quality level of power supply or in case of its complete absence.

They are designed for equipment, which is critical to the input current form: gas boilers, refrigeration equipment, devices with electric motors, compressors, transformers, etc., where UPS with clear output sinusoid is required.

SVEN RESERVE HOME line-interactive uninterrupted power supplies with a proper sinusoid in combination with batteries SVEN SV12500 and SVEN SV121000 are the optimal and universal choice to create the uninterrupted power supply system based on the price, consumer properties, coefficient of efficiency and battery service life.

Notice! Batteries are not included.
