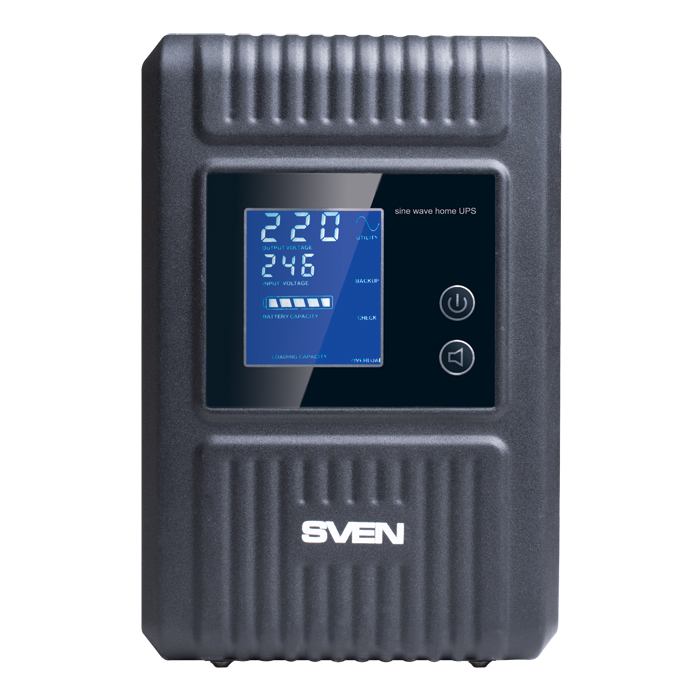

SVEN Reserve Home-1000

Short product description:

Continuous action with prolonged back-up time
Regular sinusoidal output signal
Microprocessor control
Intellectual charger for connected external batteries (stora...

All features

Similar products

SVEN Pro 400

SVEN Pro 600

SVEN Pro 650 (LCD, USB)

SVEN Pro 800

SVEN Pro 1000 (USB)

SVEN Pro 1500 (LCD, USB)

SVEN UP-L800

SVEN UP-L1000E

SVEN RT-500

SVEN RT-1000

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Continuous action with prolonged back-up time
Regular sinusoidal output signal
Microprocessor control
Intellectual charger for connected external batteries (storage batteries) with the “training” mode of batteries
Protection against short circuit, overvoltage or undervoltage of the mains and overload
IP-20 ingress protection
Self-diagnosis after switching on
Indication of operation modes on LCD display
Mode switchover time ≤ 5 msec
Built-in line regulator
Automatic start function
Low noise level

UPS type	line-interactive of continuous action with long backup time
Built-in AVR	available
Total power, VА	1000
Active power, W	600
Type of load	household and industrial equipment
Maximum load, W	600
Input voltage level, V	~150 – 275
Output voltage level, V	~220 ± 10 %
Output voltage waveform	regular sinusoidal signal
Input frequency, Hz	50
Output frequency, Hz	50
Number of phases	1

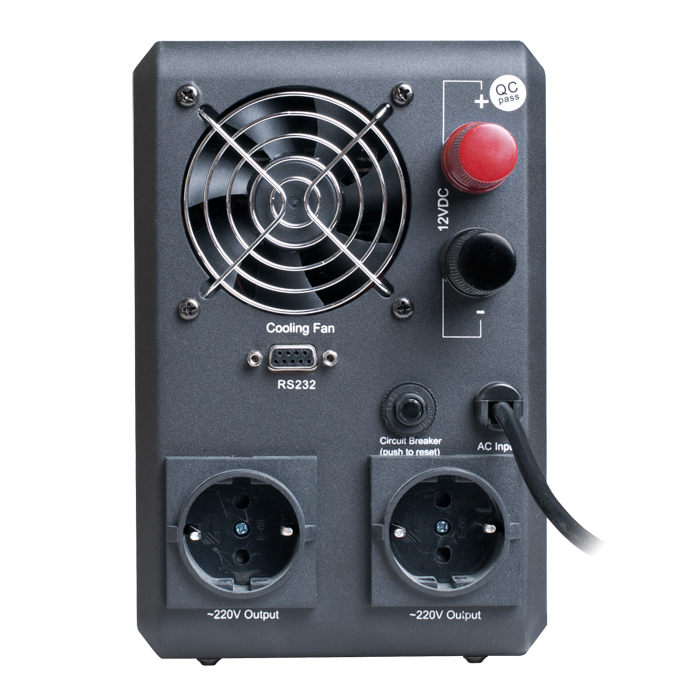

Input terminals	terminals for battery connection
Input socket	1 × CEE 7/7
Output sockets	2 × CEE 7/4
Allowable overload of the rated power, %	≤ 110
Overload protection acting, %	120
Protection	against high/low voltage, overload, short circuit and overvoltage
Beeps	low battery charge, overload, error
Accumulator type	maintenance-free sealed lead-acid batteries (not included)
Typical switching time, ms	< 5
Cooling type	convective; by fan
Indication	operation modes on LCD display
Operation mode	continuous action with long backup time
Noise level, dB	45
Environmental temperature, °С	from -5 to +40
Relative humidity, %	10-90, without condensation
Efficiency, %	65
Case material	metal
Dimensions (W × H × D), mm	140 × 214 × 367
Weight, kg	9.3
Color	black
Life time	5 years

Other items

SVEN GC-W150 Racing Wheel

Windows/PS3/PS4/Nintendo Switch/Android compatible gaming steering wheel with shift lever

SVEN VR-F1000

Relay automatic voltage regulator, 320 W, 4 sockets

SVEN MS-2050

Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control

SVEN IC-965

Web camera Full HD resolution

SVEN SPS-517

USB powered speakers with side panel volume control

SVEN Pro 1000 (USB)

Line interactive UPS, 720W, 3 sockets

SVEN SPS-725

Speaker system with Bluetooth, remote control and headphone output

SVEN SB-2400DD

Soundbar with wireless subwoofer

SVEN KB-G8400

Programmable RGB backlit gaming keyboard.

SVEN KB-S300

Wired keyboard

New

SVEN MS-G32

Backlit gaming speaker system with Bluetooth

SVEN PS-395

Waterproof portable speaker system with Bluetooth and RGB backlight

SVEN RESERVE HOME uninterrupted power supplies developed and produced by SVEN Company are the ideal solution for the uninterrupted power supply for heating systems, intellectual fire-control units and security systems, automation and refrigeration systems, etc. in conditions of low quality level of power supply or in case of its complete absence.

They are designed for equipment, which is critical to the input current form: gas boilers, refrigeration equipment, devices with electric motors, compressors, transformers, etc., where UPS with clear output sinusoid is required.

SVEN RESERVE HOME line-interactive uninterrupted power supplies with a proper sinusoid in combination with batteries SVEN SV12500 and SVEN SV121000 are the optimal and universal choice to create the uninterrupted power supply system based on the price, consumer properties, coefficient of efficiency and battery service life.

Notice! Batteries are not included.
